Led Bar - Universal 24 Volt Led For 10-22 Lcd Panels With 10 Extension Led Assembly

LED Backlight - Premium Industrial Universal 24 volt LED for 10"-22" LCD Panels 9000K

SKU: 29901709

Regular price $ 37.95 $ 33.95 Sale

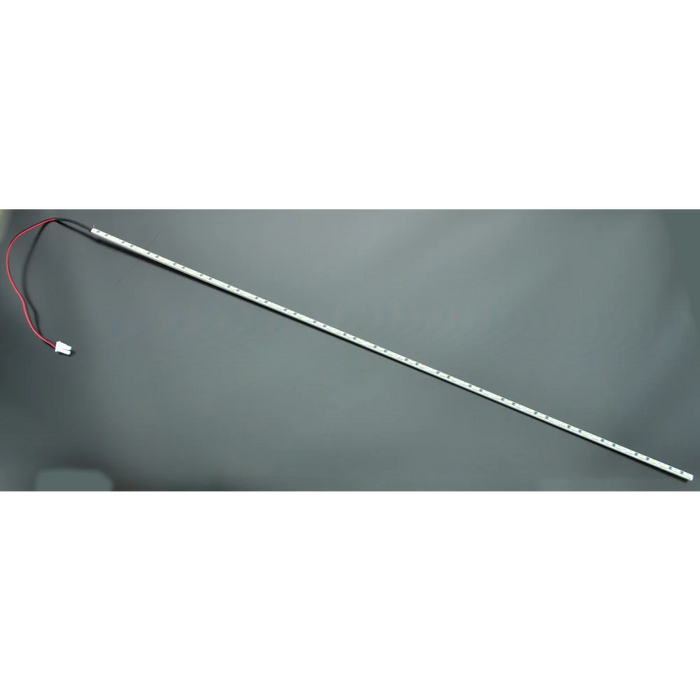

24 volt LED bar.  This model can be easily trimmed in designated 2 inch increments, to fit any size LCD from 10"-22". This is known as a cut-to-fit model.  Includes adhesive back. 482x4mm

This product is commonly used for replacing backlights in a variety of different LCD panels found in gaming machines, and other applications. These are premium 9000K LED strips.

Make sure you have an appropriate power supply before installing. These cut-to-fit LED bars do not require a specific LED driver, but only need a 24V DC power supplier. They can directly link to a 24V power supply, bypassing any existing driver/inverter.

This LED bar is suitable for both LED and CCFL backlight replacements, however, when replacing CCFLs a conditioned power supply is important to getting the most life out of this backlight as the frequent up/down of the typical voltage power source will damage the piece.

 ELECTRICAL CHARACTERISTICS:
    1. TYPICAL ELECTRIC INPUT VOLTAGE:DC 24 V
    2. TYPICAL WHOLE LED BAR POWER:7W
    3. TYPICAL ELECTRIC CURRENT:480ma

    OPTICAL CHARACTERISTICS:

    1. LED DIODE COLOR TEMPERATRE:8000-10000K
    2. LED DIODE SIZE:4014
    3. LED DIODE QUANTITY: 60 PCS
    4. LED BAR’S BRIGHTNESS: 1950 cd/m2
