LED Backlight - Premium Industrial Universal 12 volt LED for 10"-22" LCD Panels 9000K

SKU 29900109
Save 14% Save 11%
Original price $ 37.95
Original price $ 34.95 - Original price $ 37.95
Original price $ 37.95
Current price $ 33.95
$ 29.95 - $ 33.95
Current price $ 33.95

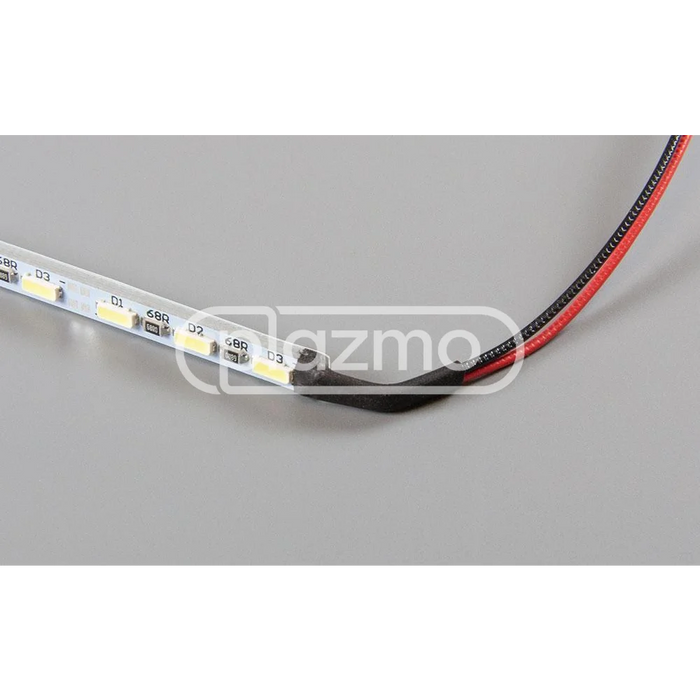

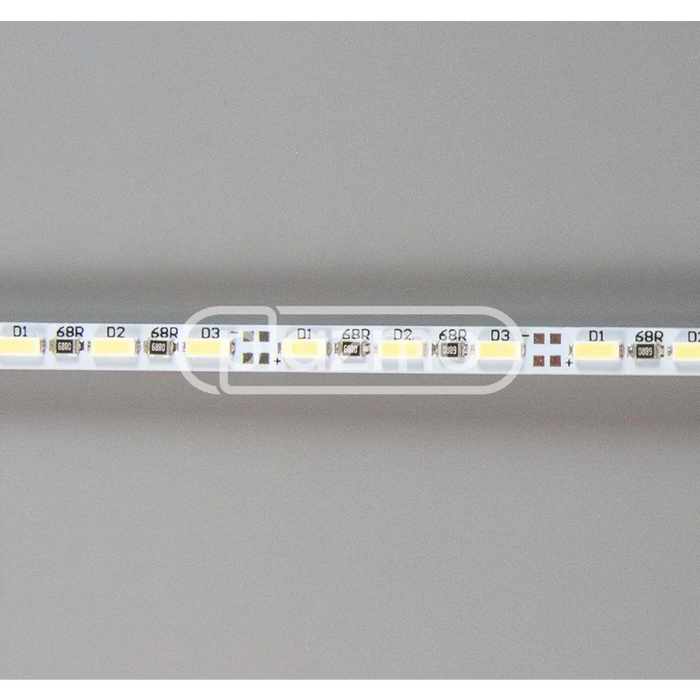

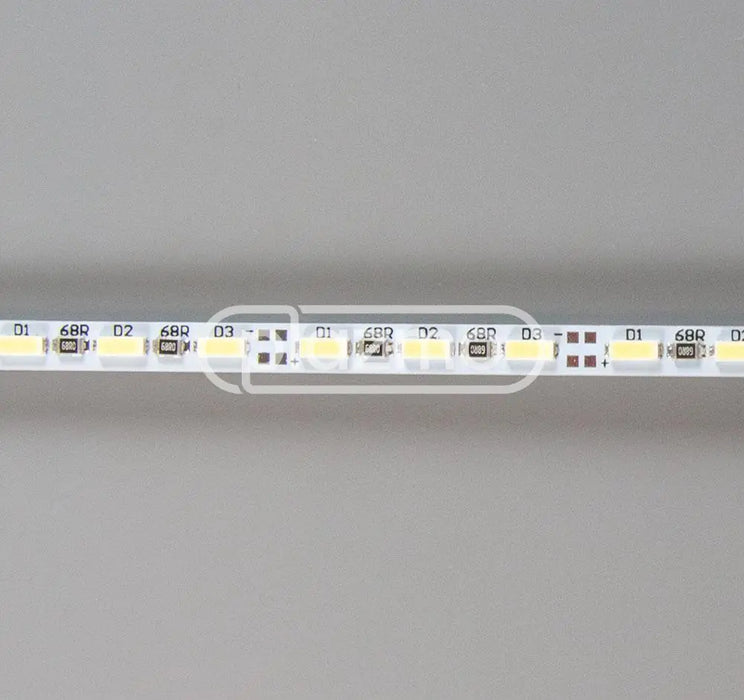

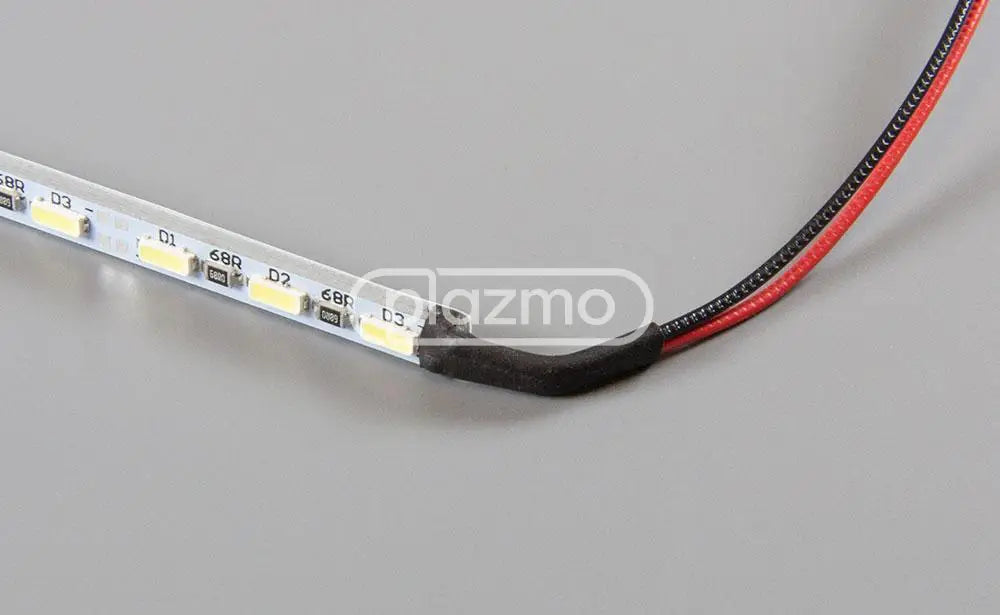

12 volt LED bar.  This model can be easily trimmed in designated 1 inch increments, to fit any size LCD from 10"-22". This is known as a cut-to-fit model.  Includes adhesive back. 482x4mm

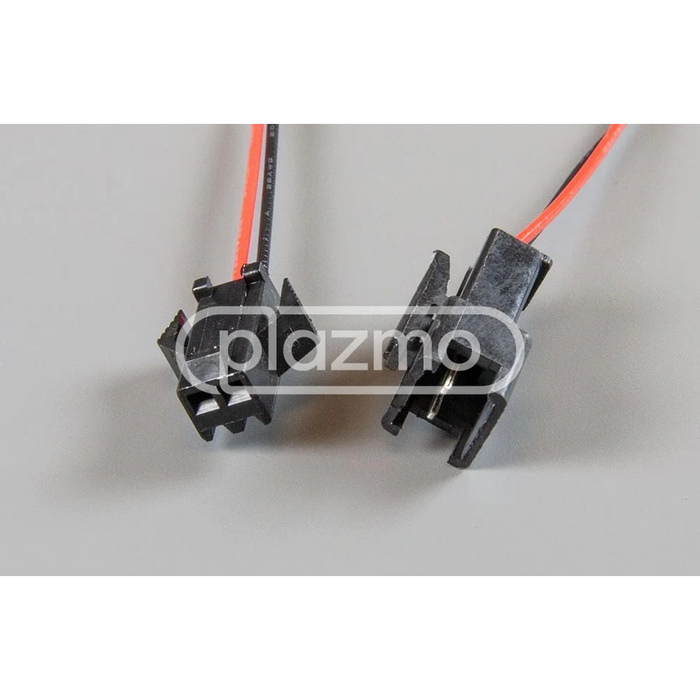

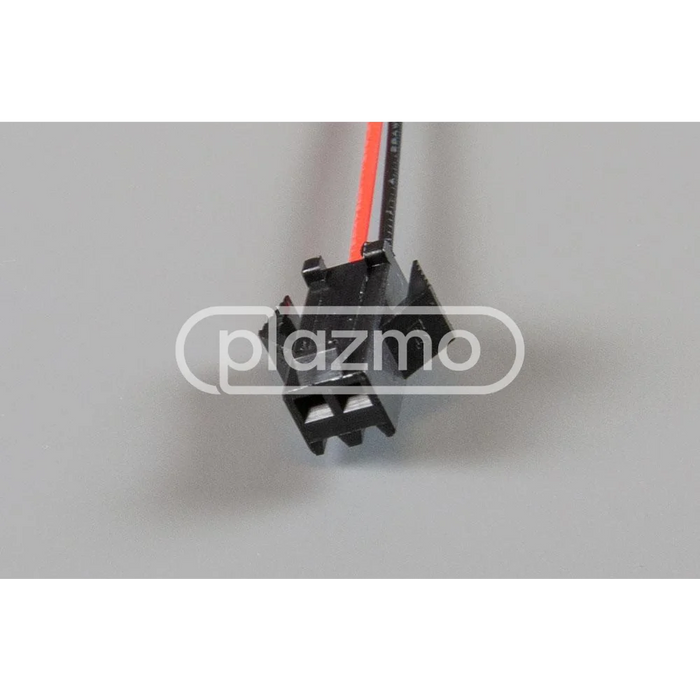

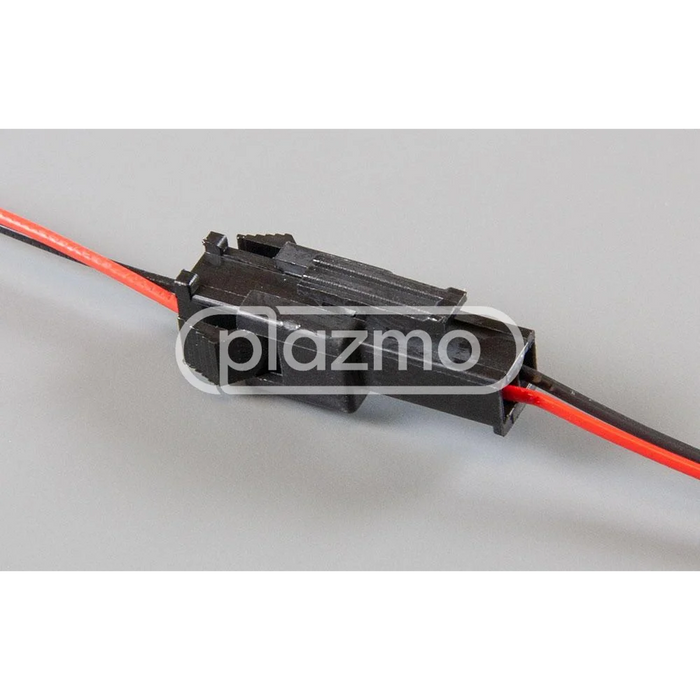

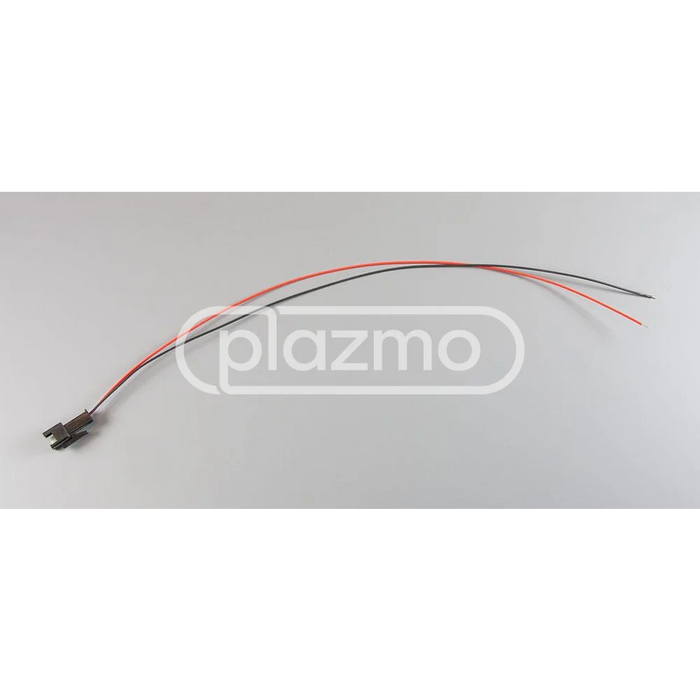

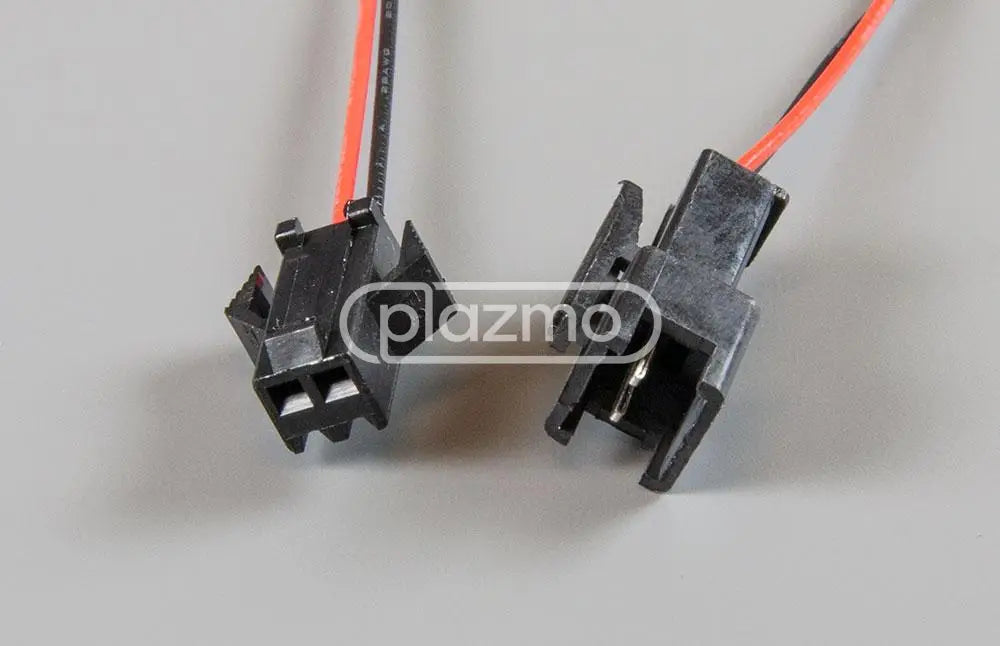

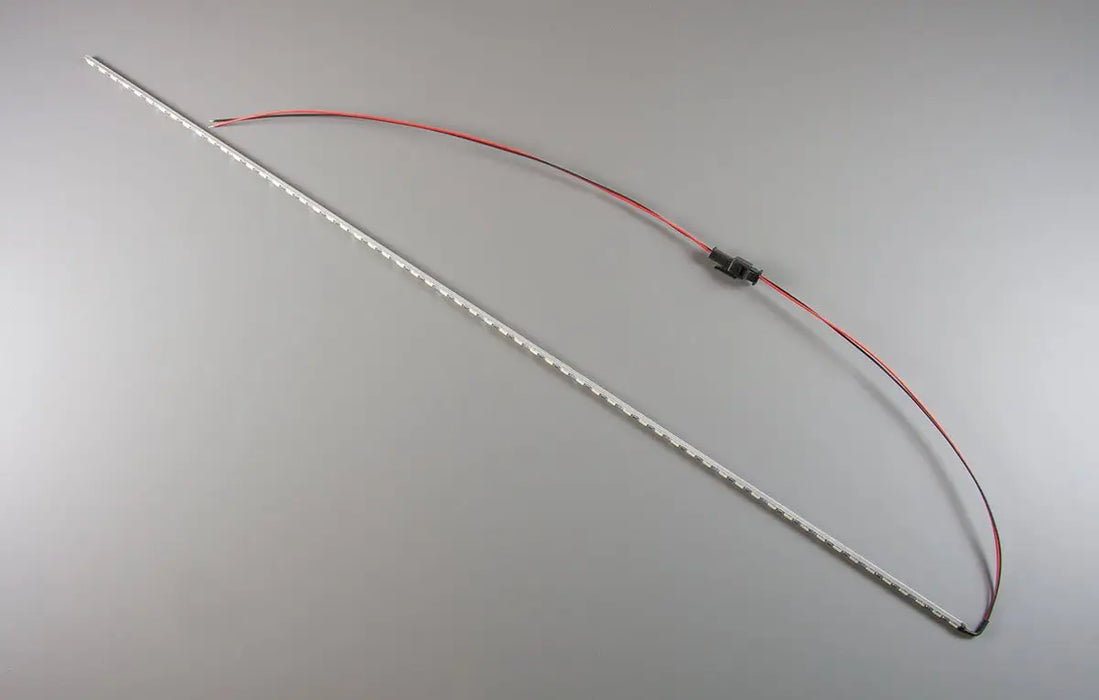

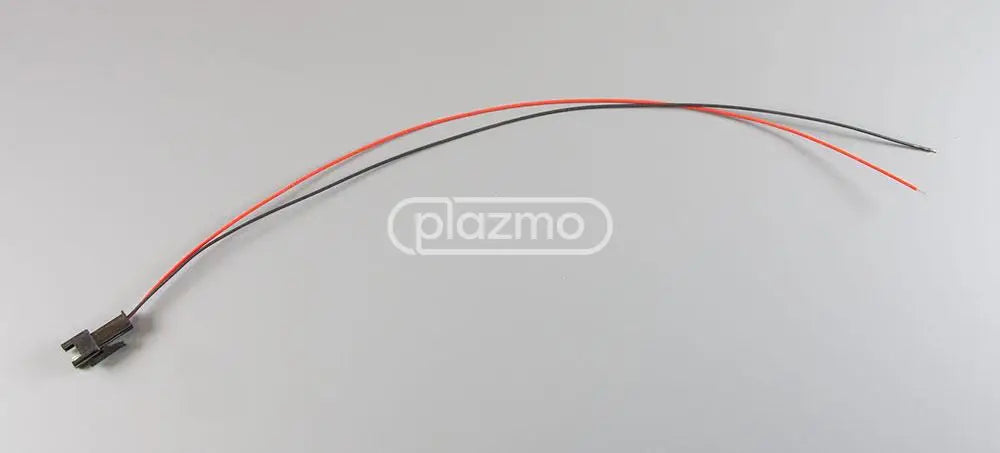

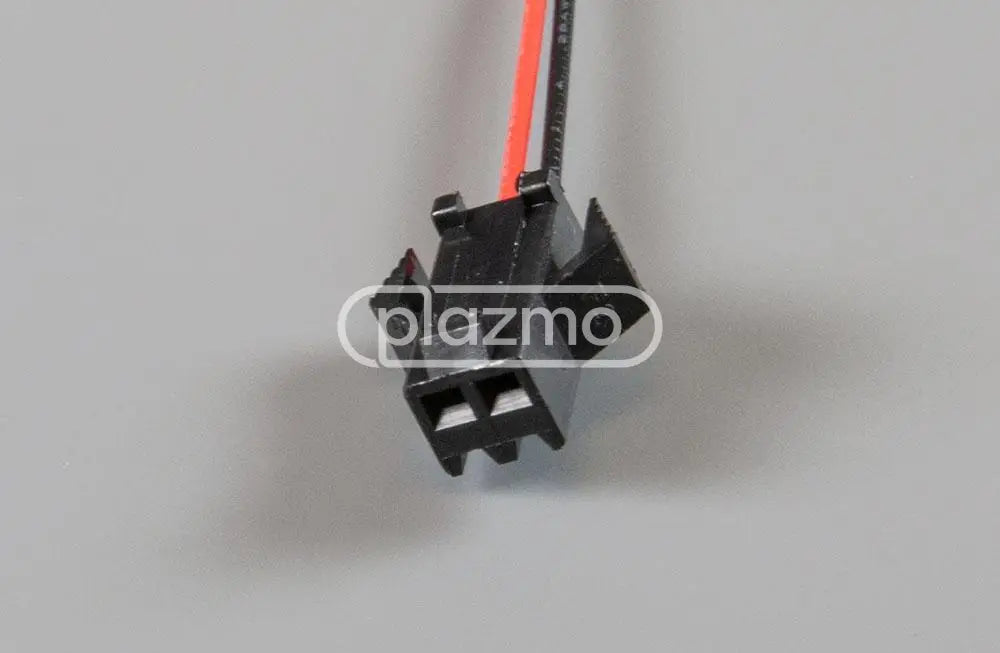

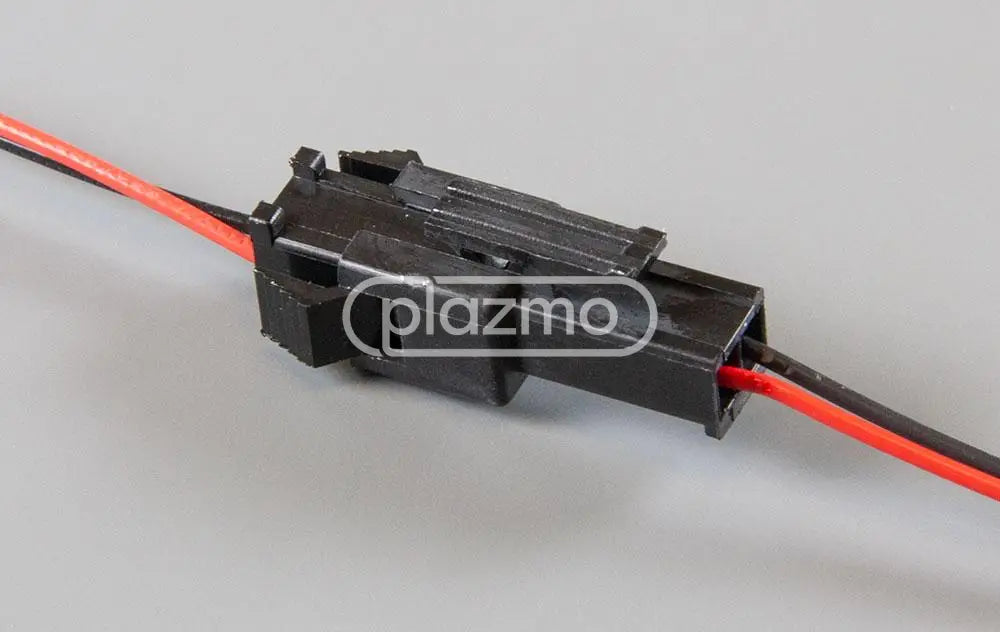

Accompanying 10" wire harness extension with female connector also available.  Select your preference from the drop-down menu.

This product is commonly used for replacing backlights in a variety of different LCD panels found in gaming machines, and other applications. These are premium 9000K LED strips.

Make sure you have an appropriate power supply before installing. These cut-to-fit LED bars do not require a specific LED driver, but only need a 12V DC power supplier. They can directly link to a 12V power supply, bypassing any existing driver/inverter.

This LED bar is suitable for both LED and CCFL backlight replacements, however, when replacing CCFLs a conditioned power supply is important to getting the most life out of this backlight as the frequent up/down of the typical voltage power source will damage the piece.


  • LED STRIP ELECTRIC CHARACTERISTICS
  1. TYPICAL ELECTRIC INPUT VOLTAGE:DC 12 V
  2. TYPICAL WHOLE LED STRIP POWER:7W
  3. TYPICAL ELECTRIC CURRENT:480mA


  • LED STRIP LIGHT AND OPTICAL CHARACTERISTICS:
  1. LED CHIP COLOR TEMPERATURE8000-10000K
  2. LED CHIP SIZE4014
  3. LED CHIP QUANTITY: 60 PCS
  4. LED STRIP BRIGHTNESS 1950 cd/m2
