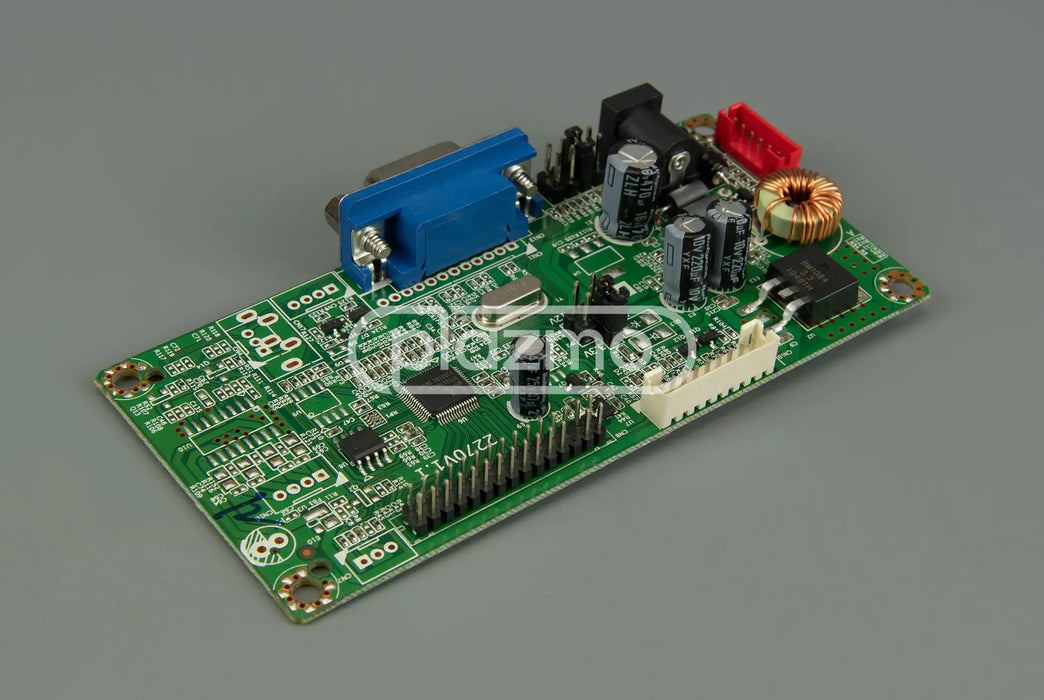

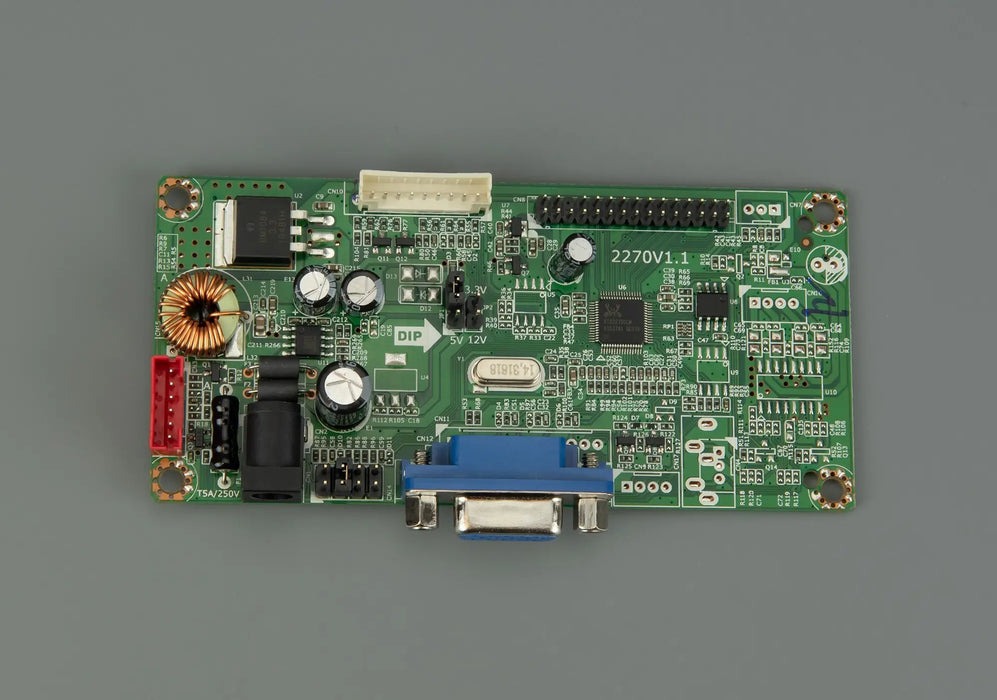

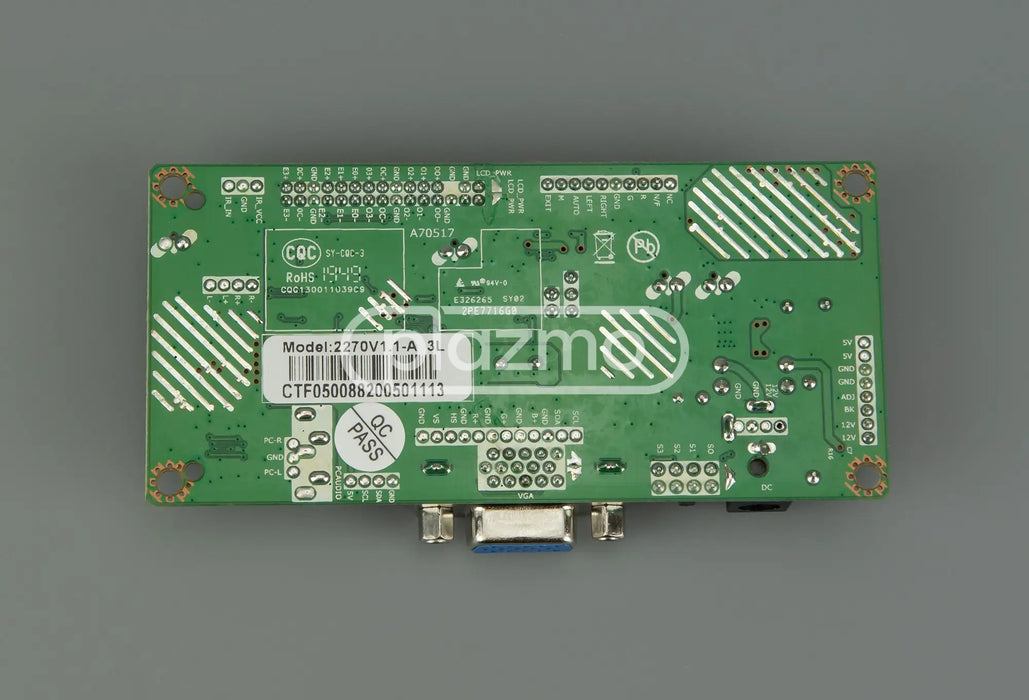

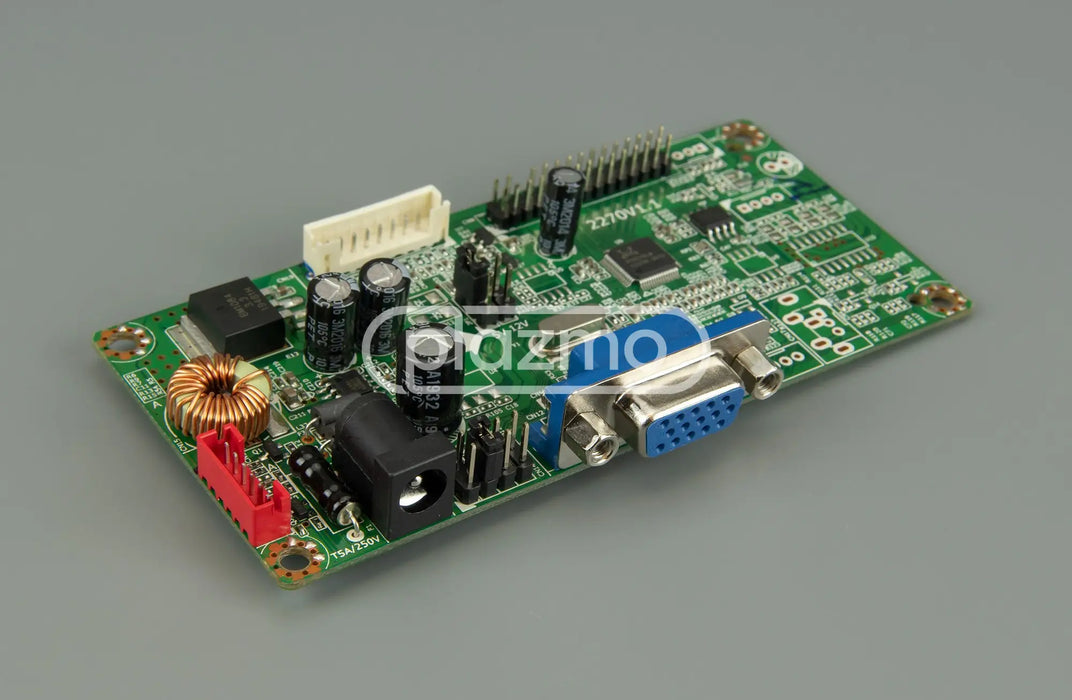

This is a multi-purpose LCD monitor board designed to support dual/single LVDS LCD panels. It also supports VGA, IR receive, earphone input and speaker output.
+12V DC power

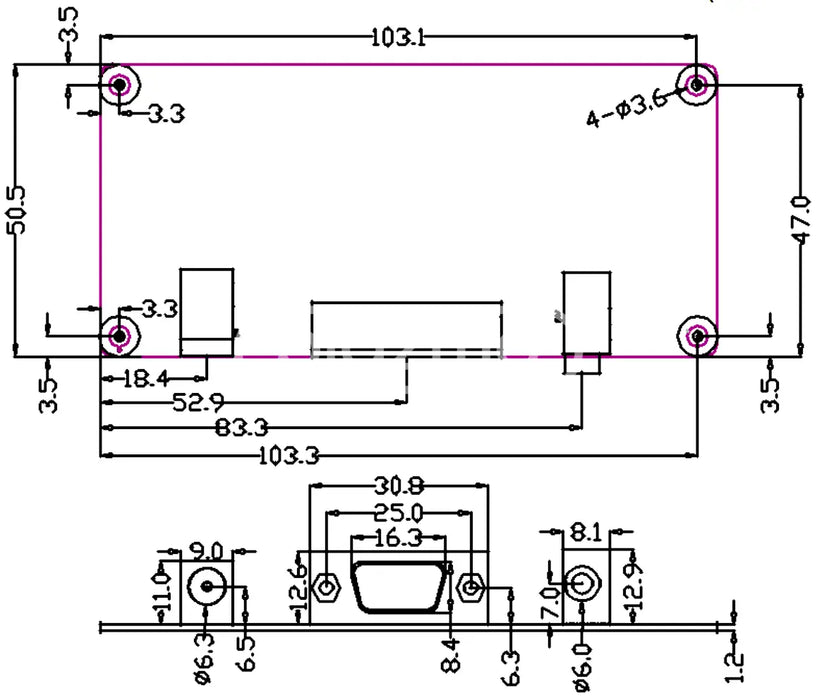

The overall dimensions of the board are 103mm x 50mm. Please see image for detailed measurements.
Compatible with Wincor Nixdorf 15" LCD TFT XGA Open-Frame monitor; Sinocan 15" Open Frame Monitor Model T06-15OF
