Universal LED Backlight Kit 18.1" LCD Panels for LED Replacement and CCFL Conversion
Regular price$ 29.95

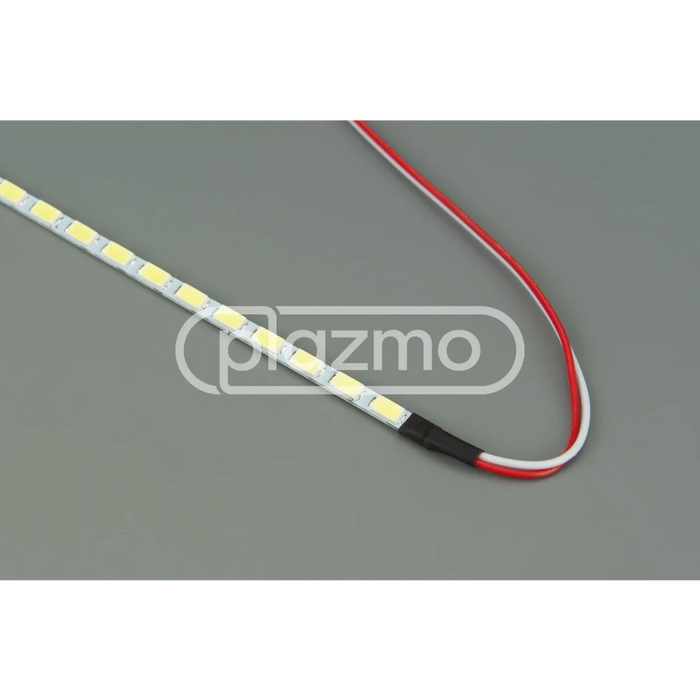

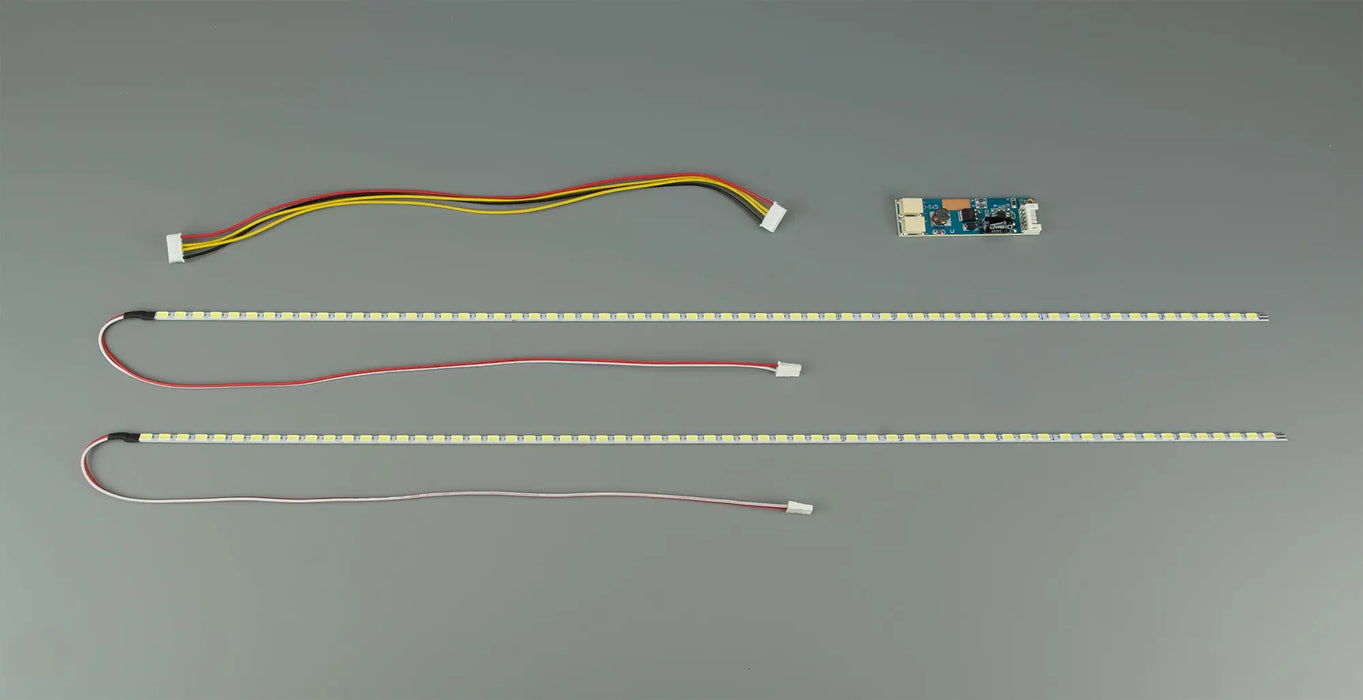

This is a universal LED kit that includes 2 high brightness LED strips, a DC-DC LED driver, and a wire harness. The LED strips can be easily trimmed in designated increments every 3 LEDs, to fit any size LCD from 10.4"-19". This is known as a cut-to-fit model. This LED bar can be used for LED replacement or CCFL conversion.

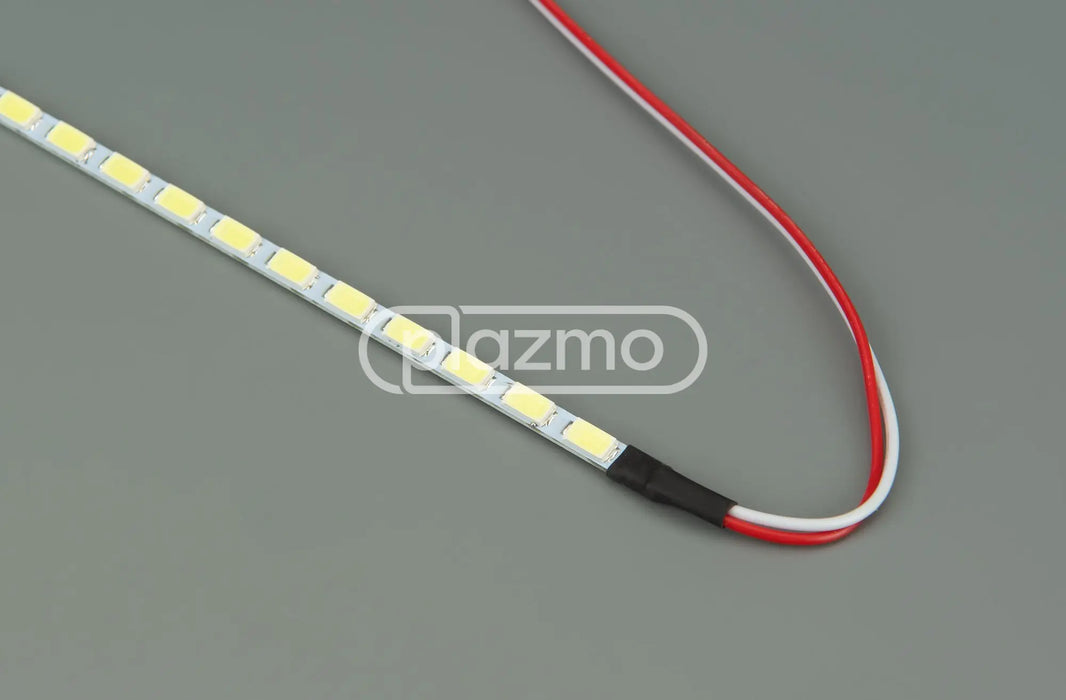

LED Strip Specifications:

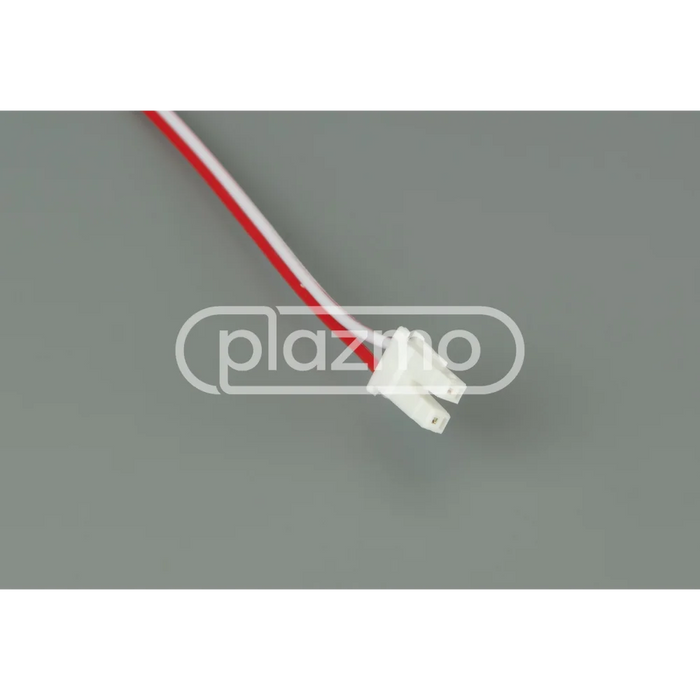

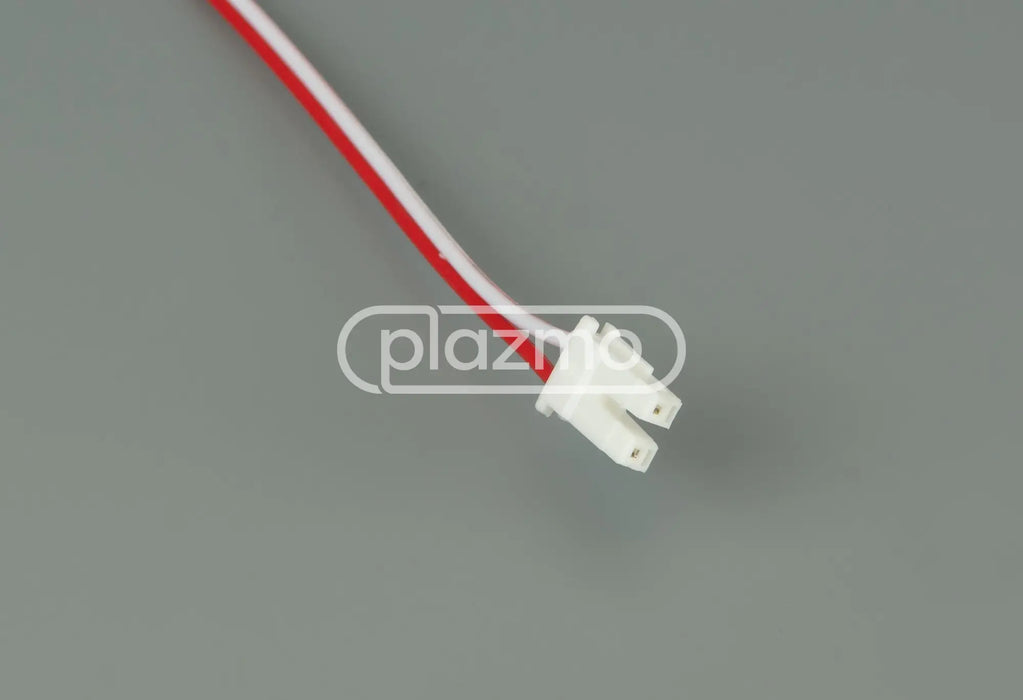

LED Strip Dimensions: 540x4x2mm LED Chip Quantity: 96 LED Chip Size: 3528 Connector: 2 pin JST Recommended Input Voltage for Single LED Strip: 10V-11V DC

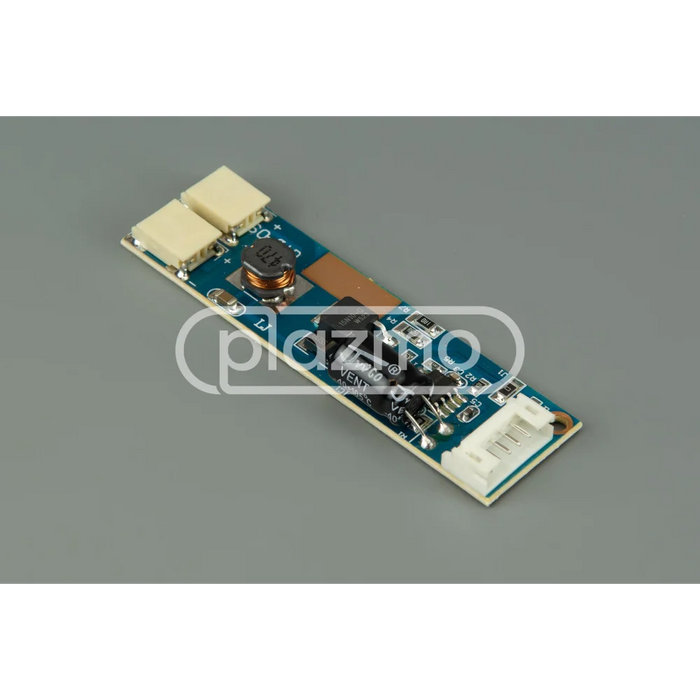

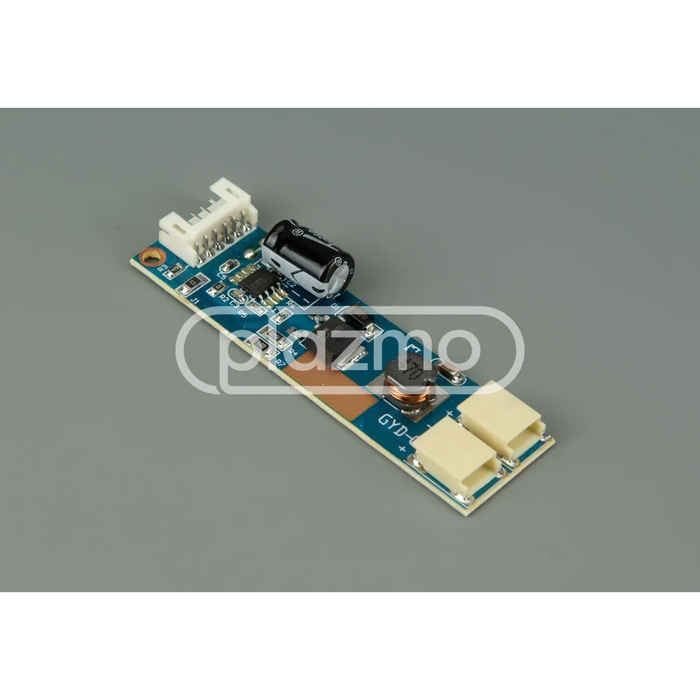

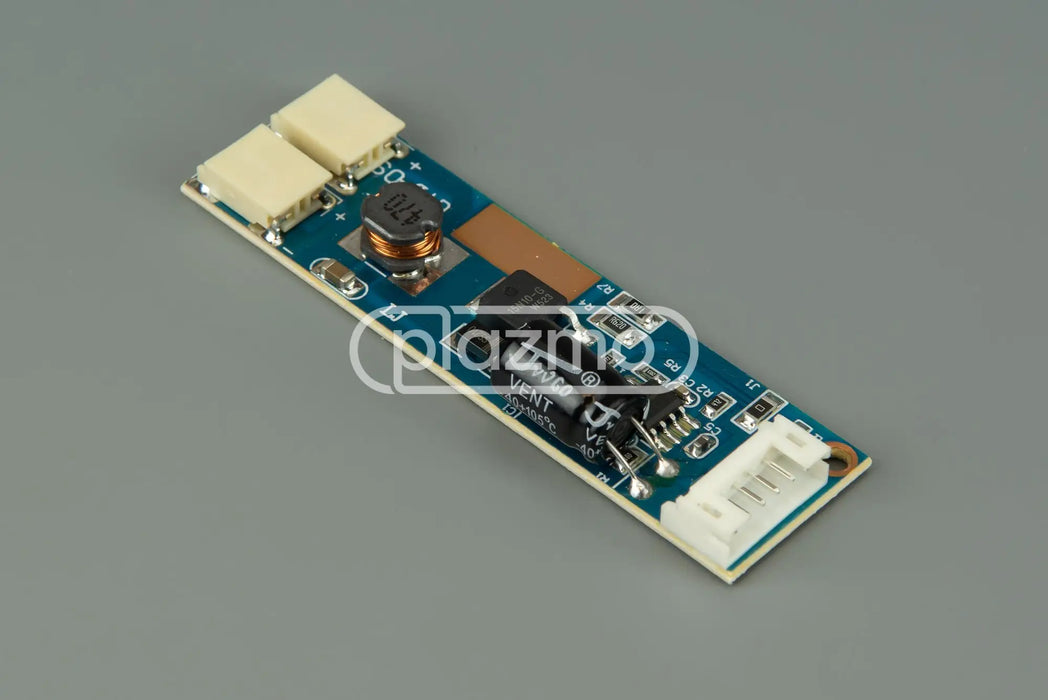

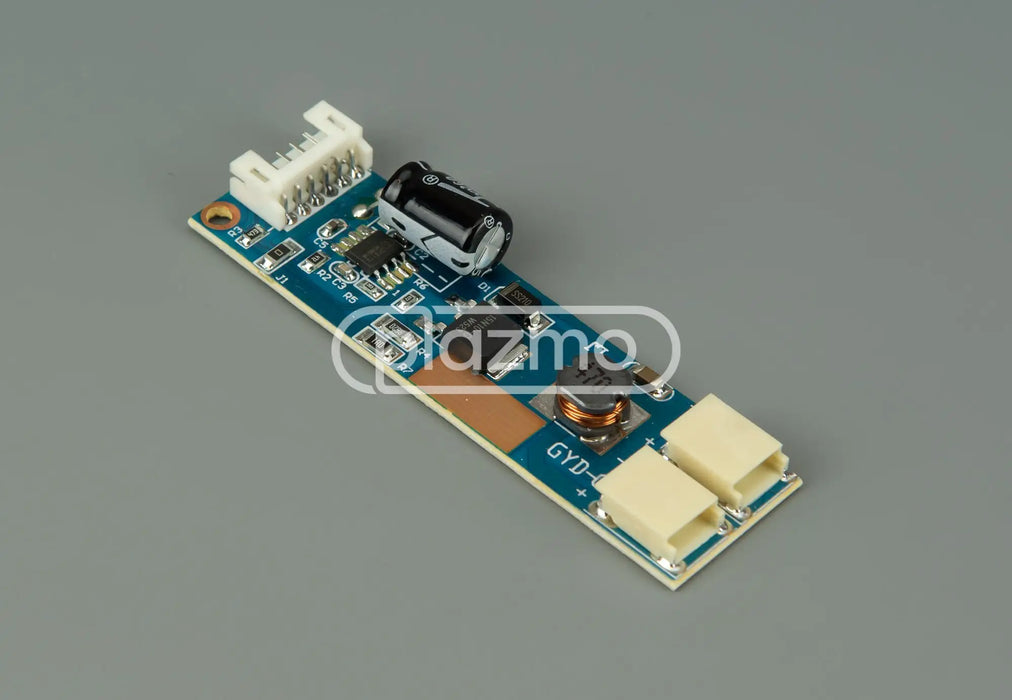

LED Driver Specifications:

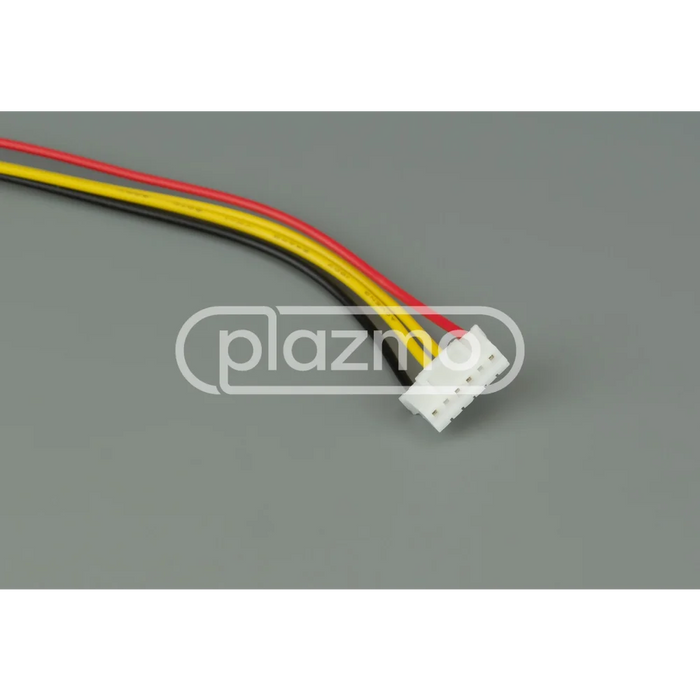

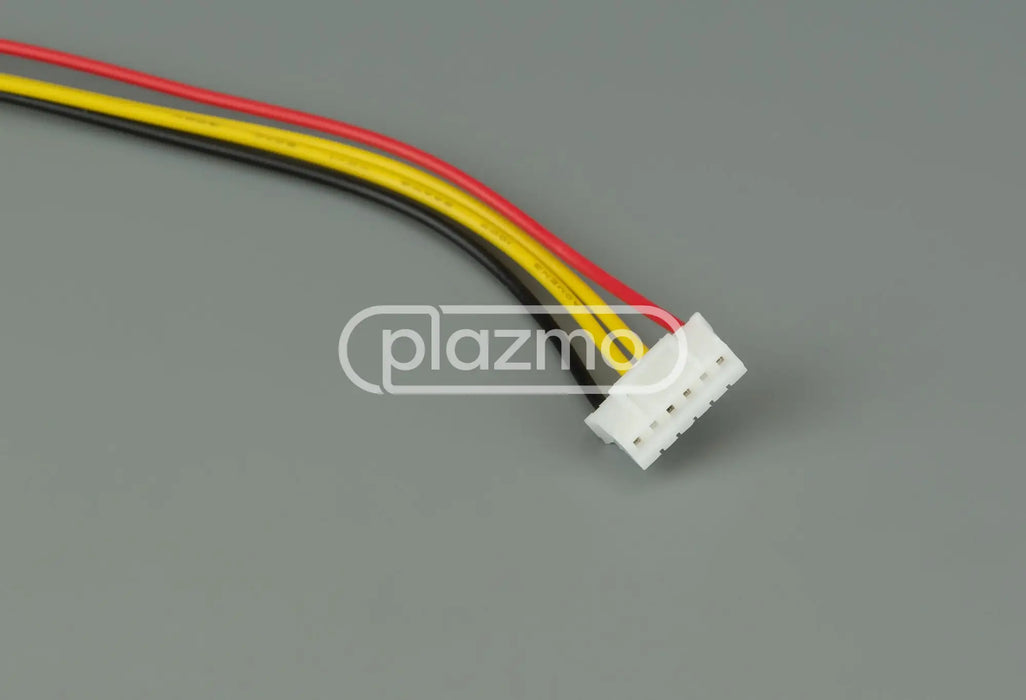

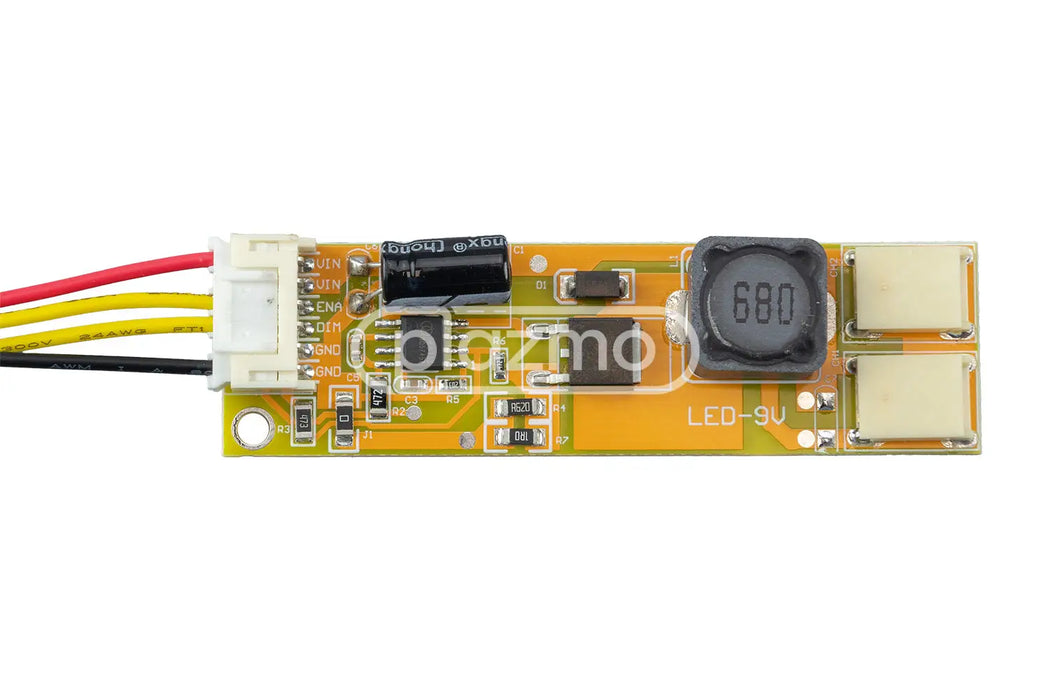

Dimensions: 7cm x 2cm Input: 9-30V DC Output: 9.6V DC Dimmable, connect to the ADJ pin to allow dimming Pin assignments definition, from Red to Black in the picture:
Make sure you have an appropriate power supply before installing. The driver is expecting analog DC voltage. The driver is designed to operate 2 LED strips at the same time; operating only 1 LED strip may have higher brightness but will reduce the life of the LED strip (to less than 10,000 hours). If connecting Single LED Strip directly to analog DC source, the recommended input is 10V-11V DC.
NOTE: Plazmo does not have user manuals because every model of LCD power supply board is different. The customer must have some technical expertise to identify the power source on the monitor power supply board.
This LED bar is suitable for both LED and CCFL backlight replacements.
This product is commonly used for replacing backlights in a variety of different LCD panels found in gaming machines, POS, ATM and many other applications.
