Custom CCFL Lamps With Wires Made to Order

SKU CCFL_WIRED
Save 15% Save 15%
Original price $ 26.95
Original price $ 26.95 - Original price $ 26.95
Original price $ 26.95
Current price $ 22.95
$ 22.95 - $ 22.95
Current price $ 22.95
Please Note for orders of 1-10 Custom CCFL Lamps With Wires, allow for a lead time of 7-10 business days. For quantities greater than 10, we will reach out to you directly with manufacturing lead times.

How To Order

  • Step 1
  • Step 2
  • Step 3
  • Step 4
  • Carefully measure your CCFL backlight

    Measure Bulb

    It is important to get an accurate measurement of your lamp. CCFL lamps are measured from end of glass to end of glass. For further reference go to How to Measure your CCFL Lamp.

  • Choose your connector style

    Connectors

    Select the connector that suits your needs. Most CCFL backlight assemblies utilize either the 2 or 3pin JST connectors as seen above. You can also choose to order your lamp with raw wire.

  • Measure the wire lengths

    Measure Wires

    Measure the wire length of both the hot lead (pink) and the return side (white). The return wire will be the longer of the two wires. Add 1/2" or 10mm to overall length to allow for connector and soldering. The wire gauge we use for this item is 28AWG. Please specify whether the measurement you give is in metric or inches.

  • Choose your wire orientation

    Wire Configuration

    Wire Orientation is critical to allow for easy replacement of your lamp. Pay careful attention to the angle of that the wire is soldered to the lamp.

How It Works

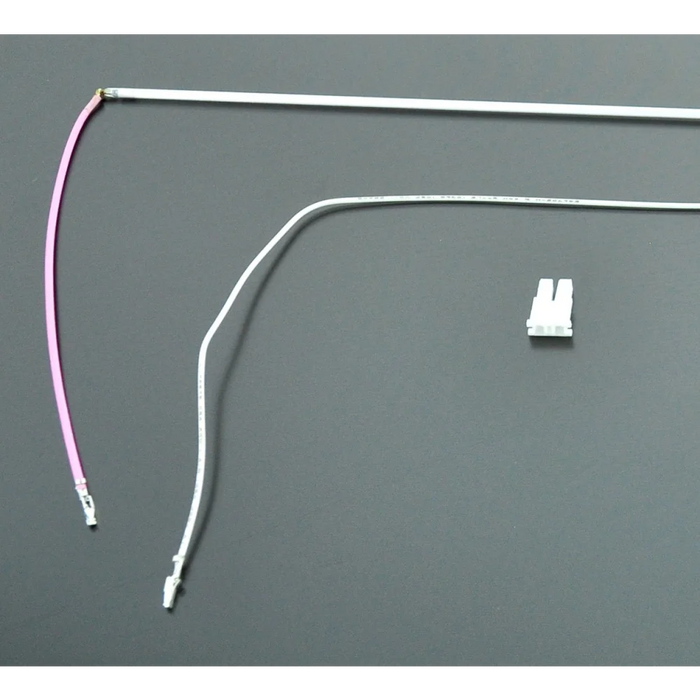

Here is an example of what you receive.

Bulb Wire Connector
Lamp complete with CCFL wire and terminal pins. Connector is also included and can be installed after end caps are put on.

Slide caps off of the old assembly and on the new assembly.

Assembly Caps
Use care in removing old caps to avoid tearing silicone material. Carefully slide them over the terminal pins and position them back on the new lamp same as the original.

Snap terminal pins into the new connector

Wire Connector
Make sure to position the terminals into the new connector exactly as the original. In most cases the High Voltage (pink wire) plugs into the #1 pin slot on the connector.
