C-shape CCFL Backlight Assembly for 5.0" Garmin GPSMAP 3205

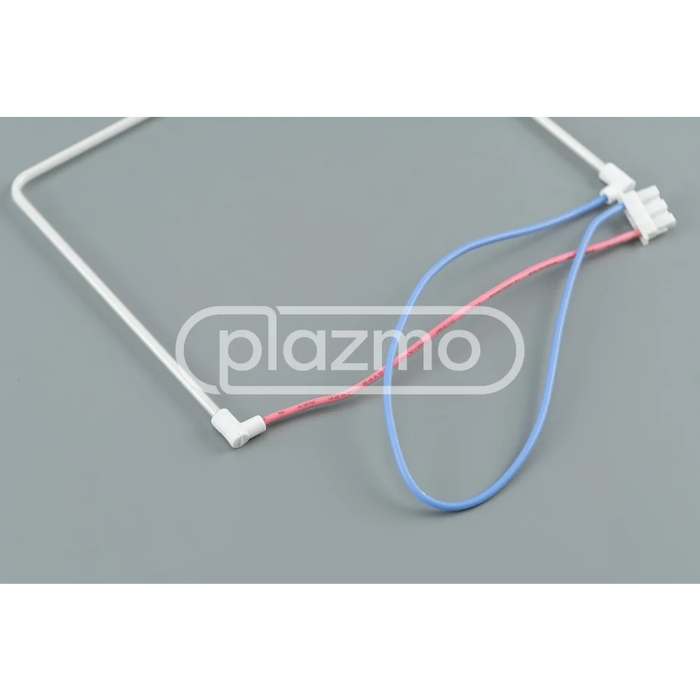

This is a complete drop in single C-shaped lamp assembly including a new full spectrum CCFL lamp, wires, 3-pin JST pin connector, and end caps. Ready for installation, no soldering! The lamp size is 87mm x 116mm x 87mm with 2.6mm diameter.  Fits the 4" x 3" LCD panel (5" diagonal) used in the 3205 chartplotter. Garmin part #010-00526-00

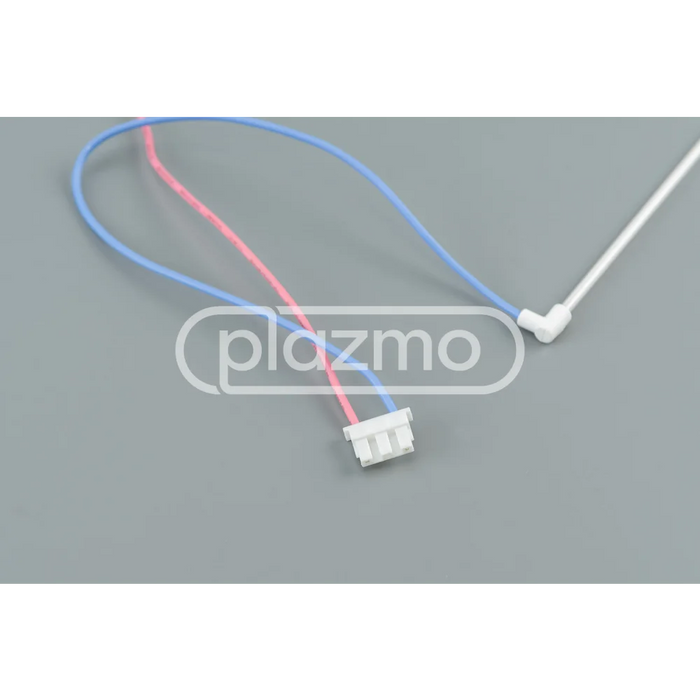

Wires are soldered 90 degrees inward.

HV wire (blue) = 225mm, OD = 1.6mm

LV wire (pink) = 113mm, OD = 1.6mm
